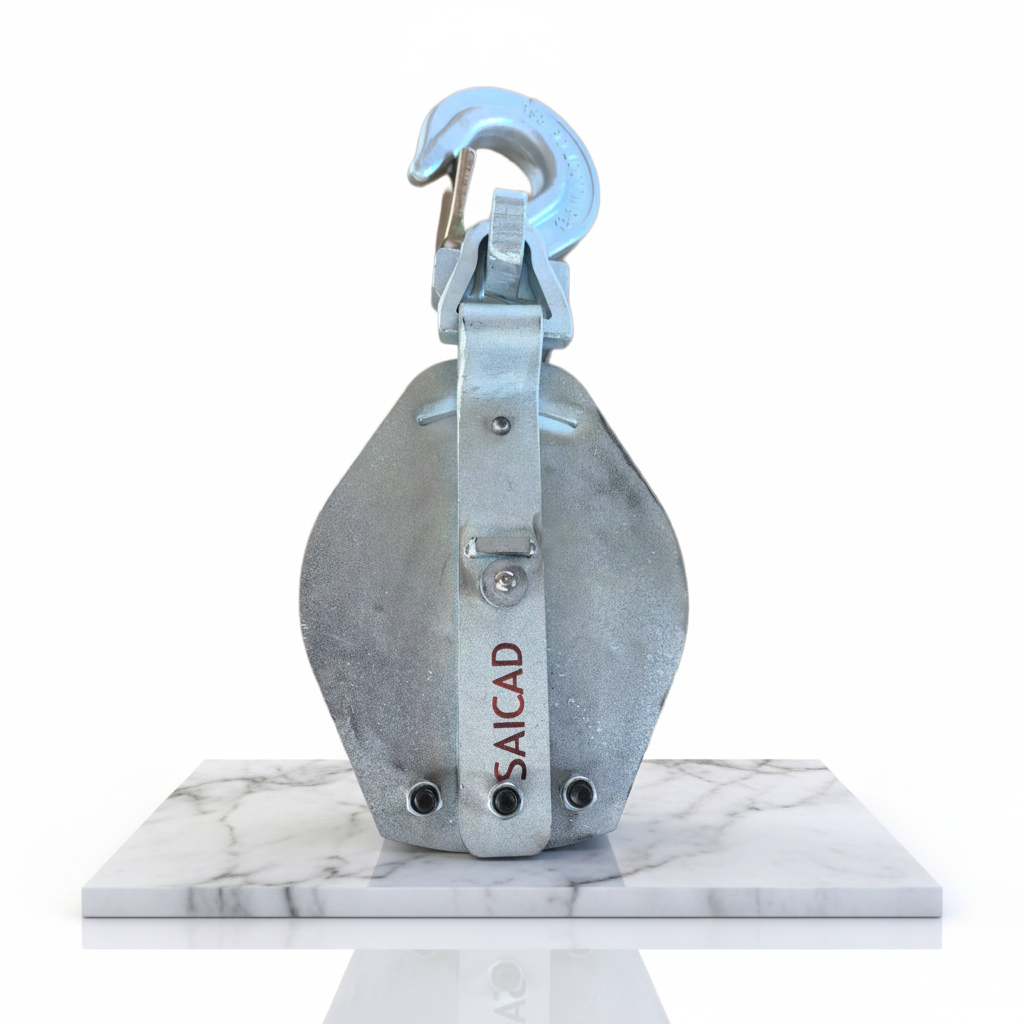

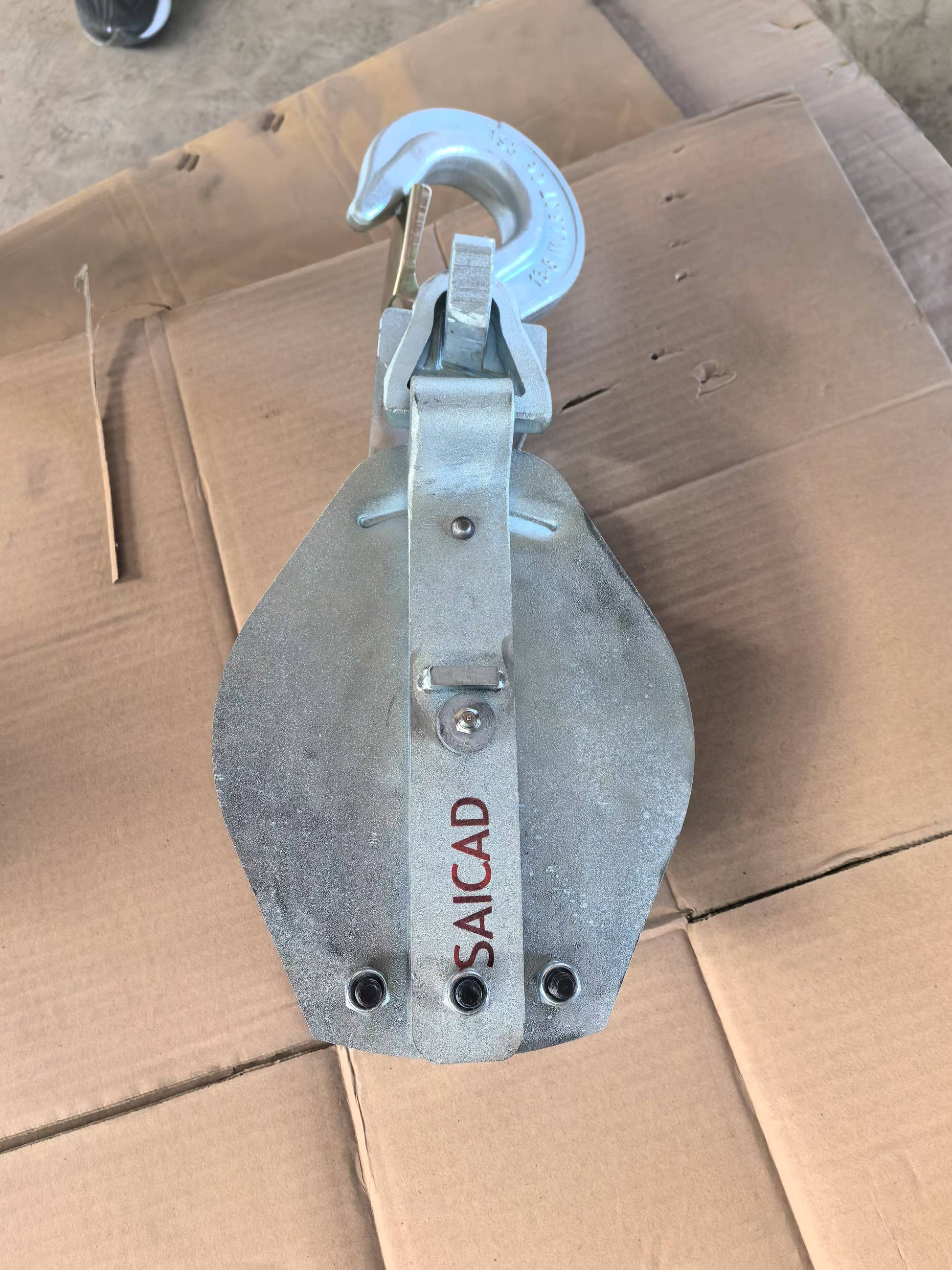

<h3>Saicad Snatch Block Tackle — A-A-59813 · Single Sheave · Forged Steel</h3>

<p><strong>ISO 9001:2015 · ITAR · HUBZone · 360° Swivel | FOB San Jose CA 95112</strong></p>

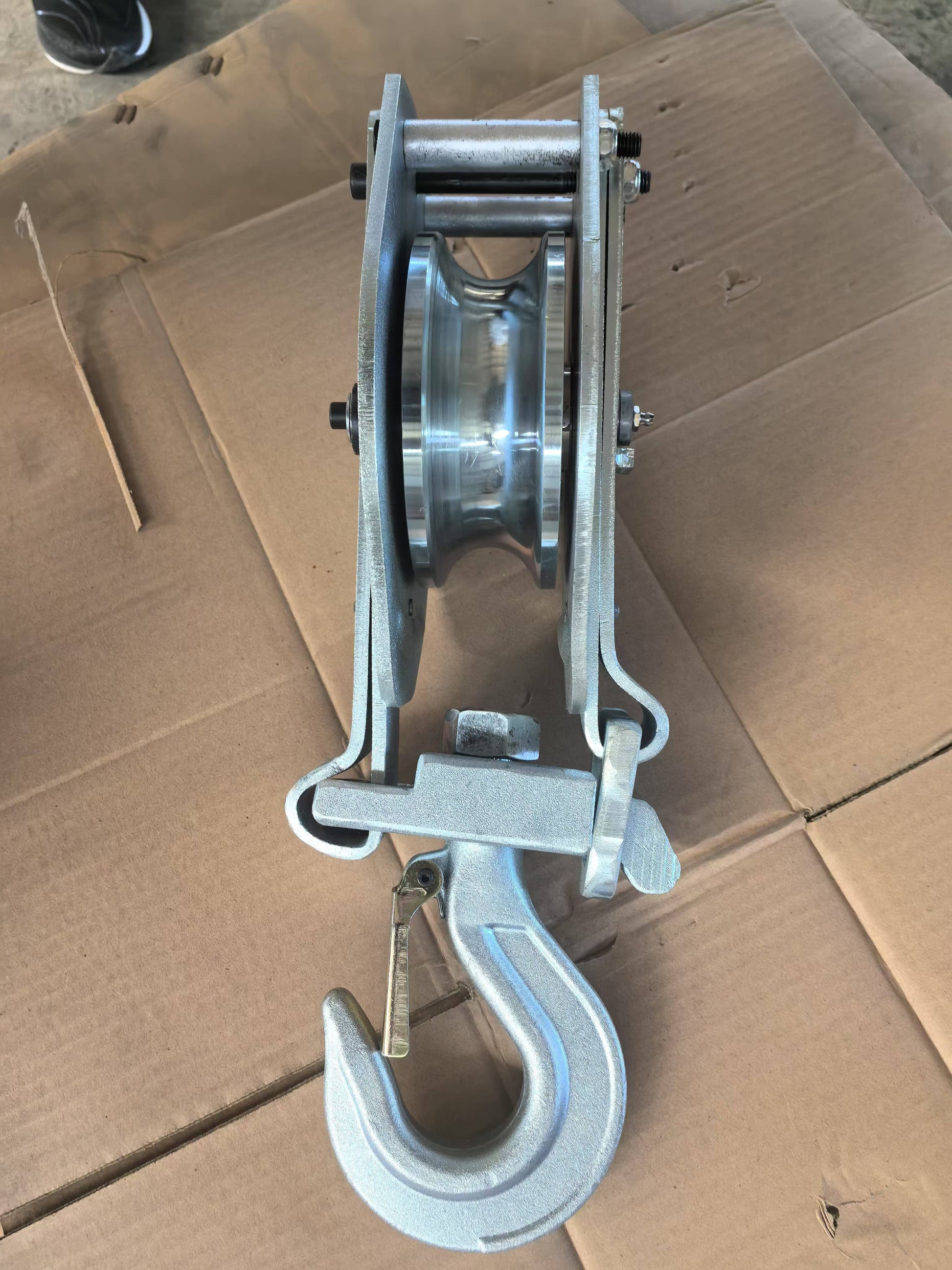

<p>Forged steel crosshead and shackle link. 90° rotation mechanism allows rope entry without reeving.

Flanged steel shell, oil-self-lubricating bronze bushing, ASTM A108 center pin.

Hot-dip galvanized ASTM A153. WLL permanently stamped per A-A-59813 + MIL-STD-130. CoC with every unit.</p>

<h4>Key Specifications</h4>

<ul>

  <li>Governing Spec: A-A-59813 — Commercial Item Description, Blocks, Tackle, Snatch</li>

  <li>Shell: Steel / malleable iron — flanged</li>

  <li>Crosshead & Links: Forged steel</li>

  <li>Bushing: High-grade bronze, oil-self-lubricating, 4× WLL press fit</li>

  <li>Center Pin: ASTM A108 — non-rotating</li>

  <li>Finish: Hot-dip galvanized ASTM A153/A153M and ASTM B695</li>

  <li>WLL Marking: Per MIL-STD-130 — permanently marked on block</li>

  <li>Sideplay: ≤ 1/16 in overall</li>

  <li>FOB San Jose, California, USA 95112</li>

</ul>
